DIY camper van platform – Turn your car into a mini camper

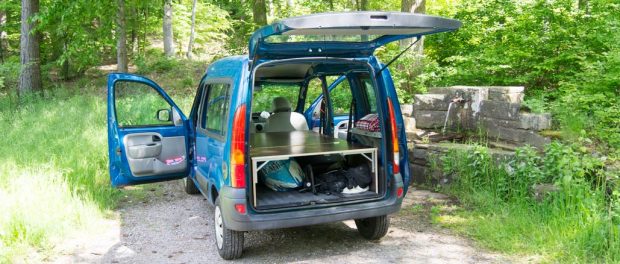

DIY Camper van - testing the platform for the first time

A camper van is a fantastic travel companion. No need to check into a hotel, no caravan to drag behind your car, much comfier than a tent. But most solutions out on the market are expensive. Others require that you do a full conversion of a vehicle, meaning you’ll lose seats and flexibility. This is why I started checking around for something that I could build myself on a small budget whilst still keeping my car in original condition to be able to bring passengers and maintain the loading space.

After having done some research I decided that the best solution would be to create a foldable platform that I can take out whenever I need the full loading space. I looked at other people’s solutions but none of them presented the full flexibility that I wanted, so I decided to create my own one.

DIY camper van - Renault Kangoo I

This article shows you how I created a DIY camper van solution for my Renault Kangoo (first generation) for under 200 Euro! It should be possible to use the same principle for other car models such as the Citroën Berlingo, Opel Combo, VW Caddy, Peugeot Partner, Dacia Dokker and many more, but the measurements given here are for the Renault Kangoo I.

A small disclaimer before we start: I cannot take any responsibility for you hurting yourself working with power tools, squeezing your fingers in the brackets or for the platform not fitting your specific car. I’m just showing how I did it and you’re free to try it out yourself and make modifications as you seem fit. All drawings, photos and instructions are mine and may only be used for private purposes. You’re welcome to share them if you link back to this article.

Materials for your camper van platform

You will need the following materials to build a platform similar to mine:

  • One phenolic plywood board, 15-18 mm thickness cut as in the diagram shows below
  • 4 foldable brackets able to carry ca 75 kg each
  • 4-6 hinges (or 2 piano hinges)
  • Screws (long enough to sit properly in the board but short enough to not stick out on the other side)
  • 1.5-2 meters of strong rope or cord (I used 6 mm polyester cord)
  • 2 yoga blocks or other solid blocks of cork, wood or similar

Here you can download a PDF (click on the picture for download) depicting the needed materials:

DIY Renault Kangoo camper van platform - material list

I had the board cut directly in the hardware store where I bought it. Phenolic plywood is an excellent choice since it’s water resistant and sturdy. It’s commonly used as flooring in trailers etc meaning it can take a lot of weight. (I could probably have built with a thinner material, but I wanted to make sure my plaform lasts.)

You will also need a drill, a screwdriver, a file or sandpaper, a knife or scissors, a measuring tape and a pen.

DIY camper van platform materials

Let’s get started

Once you have all the materials gathered it’s time to assemble them.

Start with drilling holes in the front board. I put them a few cm from each edge and rounded off the edges to make sure they don’t cut into the rope/cord later. Cut two pieces of rope/cord around 80-100 cm each and tie as loops through the holes. You can adjust the length later with the platform in place.

DIY camper van - positioning brackets

Add the brackets and sides.

To be able to fold the platform the times you need your full trunk space in the car you will need to add foldable brackets. My platform is only 10 cm thick once it’s folded down.

Put the top back piece and lay it face down. Open the brackets. Put one side piece standing against the edge leaving 2-3 mm and then put the brackets in a suitable position. Around 2-3 cm from the front and back edges of the top board should be enough to make it easier to store boxes, bags etc under the platform.

DIY camper van - marking positions for brackets

Mark the positions of the brackets + the screw holes on the top board and the side. Do the same on the other side.

DIY camper van - pre-drilling holes

Pre-drill the holes. Attach the brackets with screws to the top board and the sides.

DIY Camper van - brackets attached to topDIY camper van platform - back part done

As a small side note; I figured out too late that it was smarter to extend the side parts to support the mid-section against them. That’s why my platform has extension pieces on the sides. The measurements given in the drawing removes this issue as the side parts will stick out and hold the back of the mid-section directly. My solution to the mistake can be seen below:

DIY camper van - part supporting mid-section

Add the mid-section

To add the mid-section you need to put your platform standing up. Put the middle section to touch the edge of the back section. Easiest way to do this is to support the piece on a box or some books to make sure it stays in line when you attach the hinges.

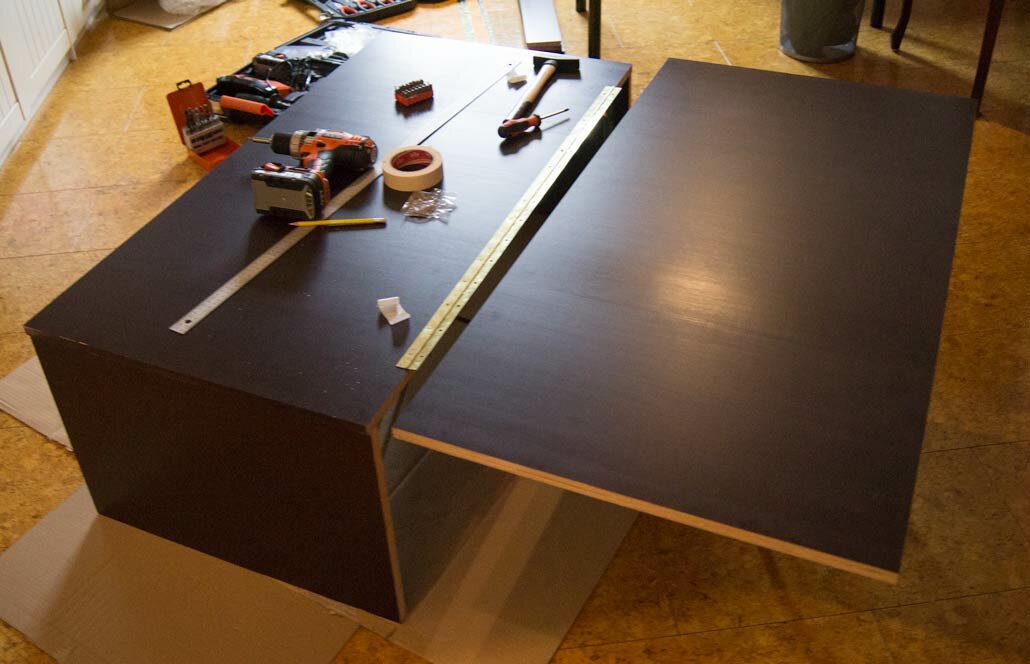

DIY camper van - adding mid-section of platform

Attach the hinges (2-3 depending on type, or one piano hinge) with screws. I used piano hinges for my platform but if I would have built it today I would have used three small hinges (right, middle and left on each section) instead as the piano hinges tend to bend up at the edges and can damage your mattress.

Attach the front section

Turn your platform over on its back again. Put the front section edge on edge with the middle section and attach the hinge(s) with screws.

DIY camper van - adding front section of platform

Your platform is now done! It’s really as simple as that.

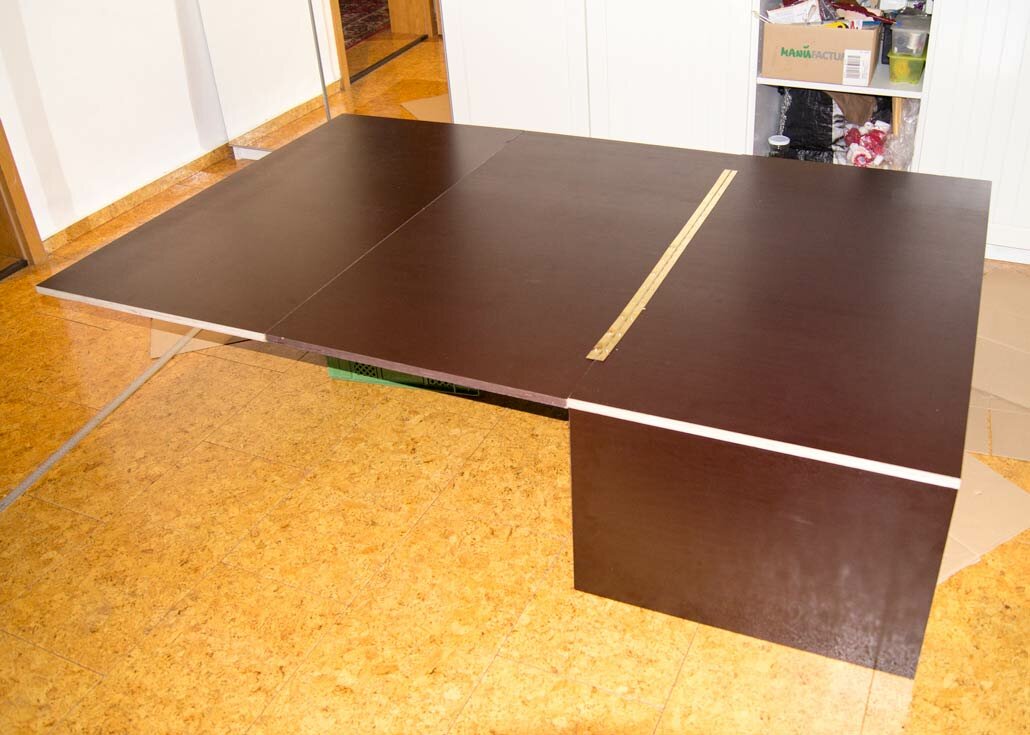

DIY camper van platform done

Fold your camping platform together and carry it out to your car to try it out. As you can see it’s very compact when folded down.

DIY camper van platform folded together

How to use your DIY camper van platform

The platform fits standing up in your trunk behind the seats. To use it you need to fold your back seats down and push your front seats forwards to make it fit.

DIY camper van solution - yoga blocks position

Put the yoga blocks on the back of the folded back seats. Fold out the platform and attach the loops to the belt holders. You can adjust the loops and/or the belt holders to make sure some of the weight is supported on them. Make sure to be careful with the belts. You don’t want the cord to cut into them and create damage.DIY camper van solution - cords to hold front part

Tips for sleeping comfortably in your camper van

An inflatable mattres, sleeping pad or foam mattress is a must to sleep comfortably. I also recommend that you create some form of curtains for the windows. I bought sun-reflective fabric and cut into fitting pieces, zig-zagged around the edges and attached magnets to make it stick to the window frames. A simple but effective solution and it takes up almost no space in the trunk folded away.

DIY camper van curtains with magnets

I hope you got inspired to build your own camper van platform. I’d love it if you share a link to your own build in the comments below. And please share the article with other people you think might want to try this out. 🙂

DIY camper van at Tamsweg camping in Austria

Enjoy the camping season!
